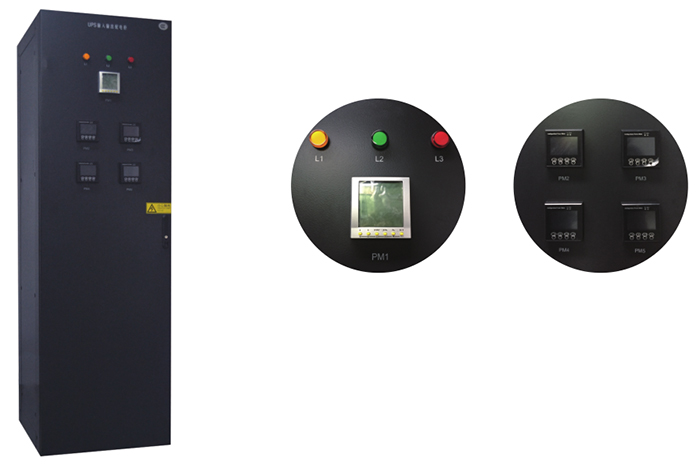

    • UPS input, output distribution cabinet

    UPS input and output cabinet is a UPS power supply assorted product that tailor-made base on UPS features, mainly have UPS power input (including double electric input), the output for UPS load, Lightning protection, UPS manual bypass, input and output detection instruments, output instructions and detection instrument and other customized functions.it could Effectively and intuitively reflect the working state of UPS.

    • Product Introduction
    • Product Features
    • Technical Parameters

    Product Introduction

    UPS input and output cabinet is a UPS power supply assorted product that tailor-made base on UPS features, mainly have UPS power input (including double electric input), the output for UPS load, Lightning protection, UPS manual bypass, input and output detection instruments, output instructions and detection instrument and other customized functions.it could Effectively and intuitively reflect the working state of UPS.

    Product Features

    Complete quality certification, including 3C certification and earthquake resistant test report;
    High reliability, adopt well-known brands switch devices, equipped with lightning protection device, electrical performance factory inspection;
    Intelligent monitoring, equipped with a 4.3-inch touch screen/smart meter, it could detect the current, power and power consumption.etc.
    Convenience maintenance , support front and back side maintenance;

    Product Parameters

    Item Parameters
    UPS input cabinet UPS output cabinet
    Input capacity Busbar/break line Plastic case circuit breaker ( maintenance bypass, with lock)
    Cabinet size 600/800/1000*800*2200mm(WxDxH)
    Types of communication RS485
    Lightning protection level Class C, 40kA（8/20μs）
    Maintenance mode front and back sides maintenance
    Protection grade IP20
    Input/ output line mode in and out from upside/in and out from downside
    installation mode fixing on the floor
    Cooling way Natural cooling
    certification 3C certification, antiseismic grade 8, 9.
    output Bus/plastic shell
    Monitoring parameters Monitor input voltage, current, power, power factor, frequency and quantity of electric charge, equipped with 4.3 inch touch screen or panel type smart meter.
    Working temperature -5%～+40℃
    Working humidity 5%RH～95%RH
    The power supply system 380/400/415V 50/60Hz
    Altitude 0 ~ 2000m, limited using above 2000m.
