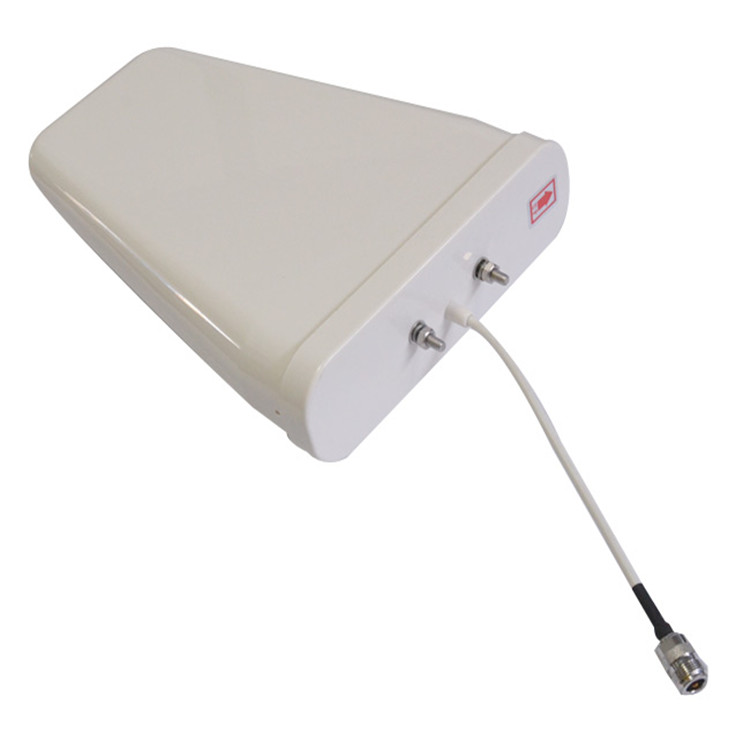

    • Log-periodic antenna
    log-periodic antennas are widely used and efficient. It has a high efficiency almost expected value and better directivity, easy site construction and easy maintenance compared with other high gain antennas.
    Download

    Electrical parameters:

    1.Frequency range: 806-9600MHz 1710-2690MHz

    2.Polarization: vertical

    3.Gain:8.5±1dbi(806-960MHz) 9.5±1dbi(1710-2690MHz)

    4.Horizontal half power beam width: 75±10°, 70±15°

    5.Vertical half power beam width: 55°(806-960MHz), 50°(1710-2690MHz)

    6.Front-to-back ratio:>15dB

    7.VSWR: ≤1.5

    8.Third order intermodulation: <-107dBm

    9.Input impedance: 50Ω

    10.Power capacity: 50W

    11.Anti-lightning protection: DC ground


    Product feature:

    log-periodic antennas are widely used and efficient. It has a high efficiency almost expected value and better directivity, easy site construction and easy maintenance compared with other high gain antennas.
