    • Server Cabinet

    SUNSEA series server cabinets are new generation, high quality cabinet that is designed to meet the modern data center application requirements, with high density, high strength, high ventilation rate features, to meet various application scenarios requirements .

    • Product Introduction
    • Product Features
    • Technical Parameters

    Product Introduction

    SUNSEA series server cabinets are new generation, high quality cabinet that is designed to meet the modern data center application requirements, with high density, high strength, high ventilation rate features, to meet various application scenarios requirements .

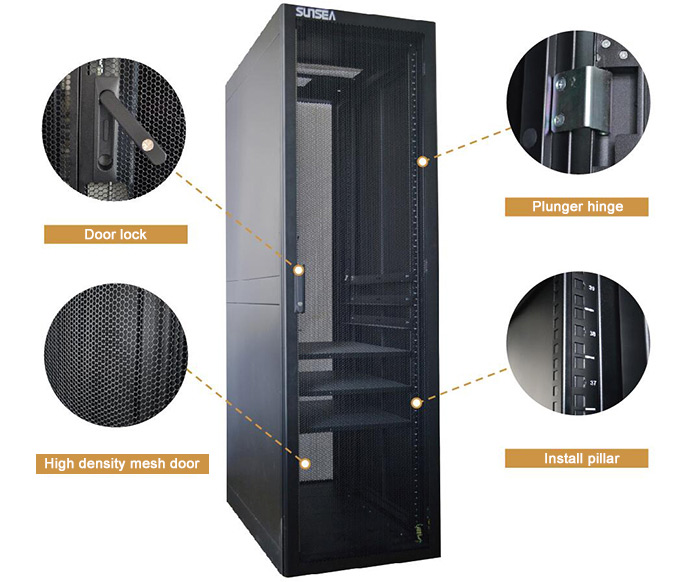

    Product Features

    The frame column adopts G type bending steel, load-bearing up to 1500KG.
    Strong compatibility, Movable front and rear mounting columns, suitable for all kinds of air supply type.
    Adopt the whole frame welding, the antiseismic grade reach 8 or 9.
    High - density mesh hole, hole porosity up to 76%.
    High security, the protection level could reach IP20.

    Product Parameters

    Specifications（H x W x D） 2000 x 600 x 1000、2000 x 600 x 1100、2000 x 600 x 1200
    2200 x 600 x 1000、2200 x 600 x 1100、2200 x 600 x 1200
    Installation space 42U      47U
    aperture ratio 76%
    load-bearing 1500KG
    Air inlet type Bottom Air inlet/Front Air inlet
    Color Black (RAL9004) and international grey (RAL7035)
    Carried Standard IEC297-2/EIN4194
